钻井固控循环系统是现代钻井装备不可缺少的重要组成部分，它能满足钻机在钻井过程中泥浆的正常循环和性能稳定。
天意钻井固控循环系统是在综合国内外固控循环系统优点的基础上，结合钻井工艺的实际需要而设计的新型产品，由振动筛、真空除气器、除砂器、除泥器、离心机五级净化设备组成，能够实现钻井液的储存、调配，去除有害固相，维护钻井液性能，满足钻井液的循环、加重、剪切及事故处理等特殊情况下的要求，可有效提高钻井作业的效率和安全性。方便于公路、铁路运输，并能在井场内短距离拖移。
天意钻井固控循环系统已在中石油、中石化、中海油以及哈萨克斯坦、委内瑞拉、苏丹、伊朗、阿尔及利亚、尼日尔、乍得等等油气田项目中广泛应用。
技术特点
l 耐寒、耐高温、防爆、防渗漏、防腐蚀、防雨，适应恶劣钻井条件。
l 整体布局人性化，外形美观、适用性强、设计新颖、布局合理、性能完善、流程先进。
l 罐面设有中压泥浆管线和清水管线。
l 罐体后侧设有压杠式清沙门，开启方便灵活。
l 罐体之间采用由壬式硬连接，安装拆卸方便、伸缩性好。
l 罐间定位准确、连接快速。
l 泥浆净化级别高、效果好，泥浆计量准确。
l 适于井队频繁搬迁安装要求。
l 罐体采用V型瓦楞板，整体钢性好，外形美观。
l 表面进行喷砂处理，罐内采用重防腐沥青漆，罐外采用耐油及酸碱腐蚀的油漆。
l 可根据用户要求进行设计制作。
Drilling solid control and circulating system
Drilling solid control and circulating system is a necessary part of modern drilling equipments. It can meet the requirements of normal circulating and performance stability of mud during drilling.
requirements of drilling techniques, consisting of fiv stage purified equipments of vibrating screen, vacuum degasser, desander, desilter and centrifuge. It can store and mix drilling mud,
remove harmful solids, maintain the performance of the drilling mud, meet the requirements of circulating, weighting, shearing and accident management and improve efficiency and safety
of drilling. It is easily transported by roads and railways and can be moved within the wellsite.
Technical features
l It has the features of winter protection, higher temperature resistance, explosion proof, leak resistance, corrosion protection and rain proof. It can be suitable for harsh drilling conditions.
l The overall arrangement is very human with fine appearance, wide applicability, new design, reasonable distribution, complete performance and advanced work flow.
l There are medium-pressure mud line and fresh water line on the surface of the tank.
l There is a sand cleaning gate with a pressure bar at the back of the tank which is easy to open.
l Tanks are connected by unions which can be assembled and disassembled easily and flexibly.
l Tanks are connected correctly and quickly.
l The mud is effectively purified in a higher grade and is measured accurately.
l It is suitable for frequent movement and installation.
l V-shaped corrugated sheets are used as the tank body with good steel and fine appearance.
l The surface is sandblasted, anti-corrosive bituminous paint is used inside the tank and oil resistant and acid and alkaline resistant paint is used outside the tank.
l It is can be designed and manufactured according to customers’ requirements.

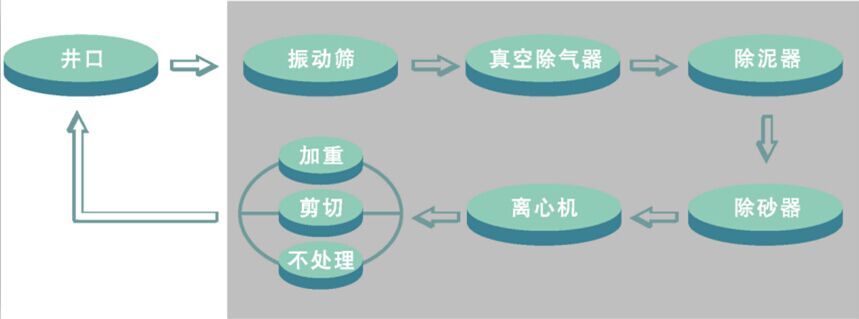

净化处理示意图
Diagram of purifyin
备注：
1、可根据客户要求适当增加或减少罐体长度。
2、从产品出厂1年内由专业人员免费维修、更换零部件。
Remarks:
1.Tank length can be increased or reduced according to customers’ requirements.
2. Professionals should maintain and replace spare parts for free within one year after delivery of the product.

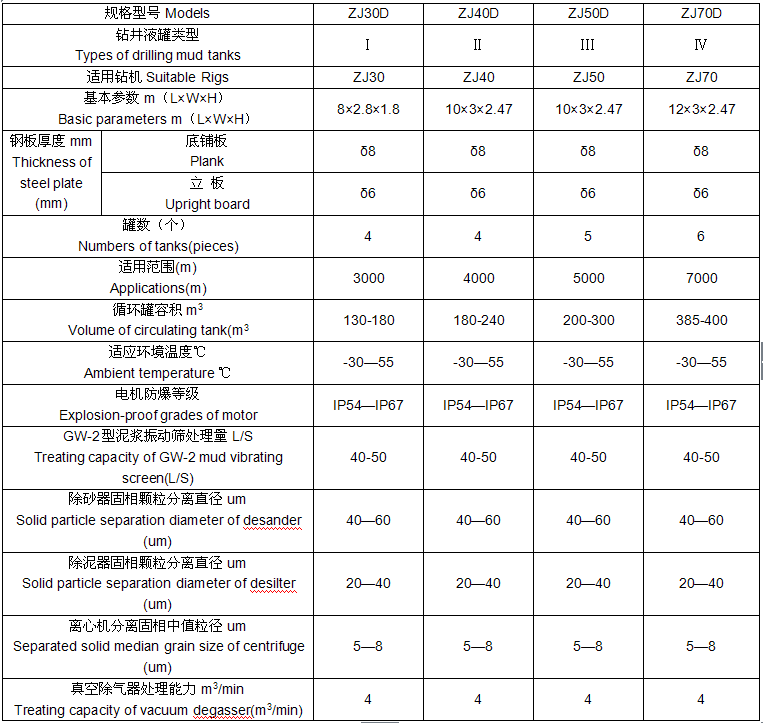

钻井固控循环系统配置单
Distribution sheet of drilling solid control and circulating system

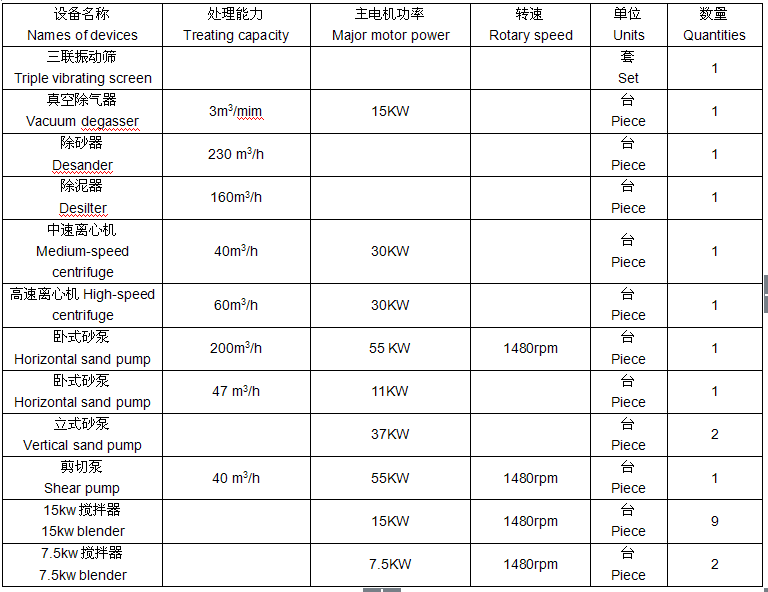

ZJ30D型配置单
Distribution sheet of ZJ30D system

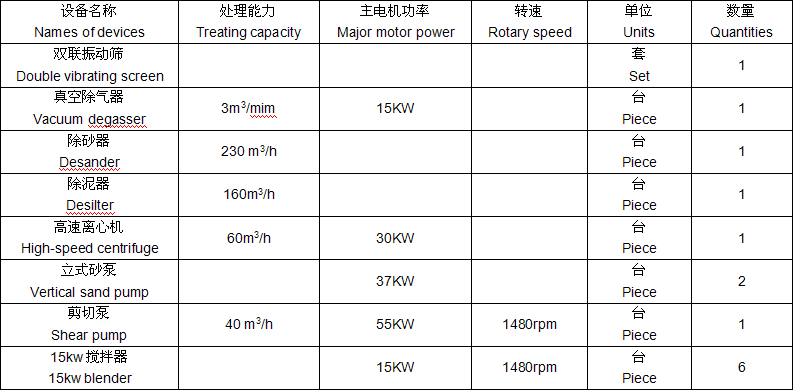

ZJ40D型配置单
Distribution sheet of ZJ40D system

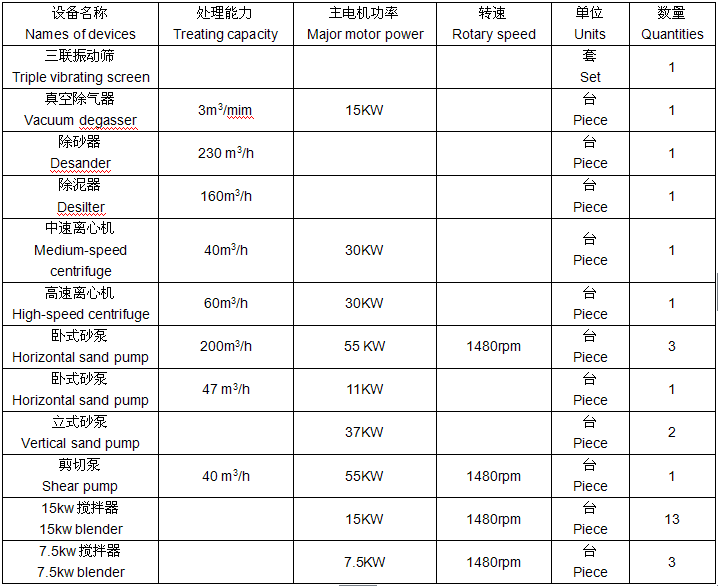

ZJ50D型配置单
Distribution sheet of ZJ50D system

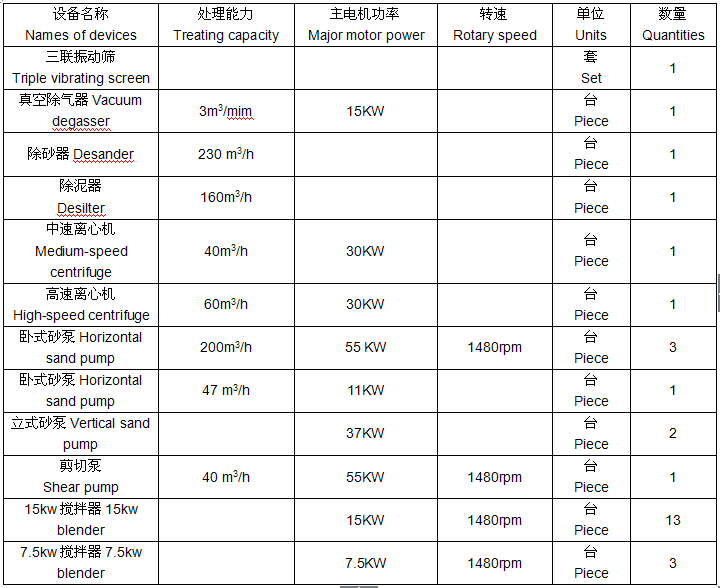

ZJ70D型配置单
Distribution sheet of ZJ70D system
备注：可根据客户要求调整。
Remarks: They can be adjusted according to customers’ requirements.
参考标准配置单选择配套设施，如有特殊要求，请向产品技术部门咨询。
Support facilities should be chosen according to the standard distribution sheet. For any special requirements, consult with the technical department of the product.
